The functional map of the controller. No product imagery exists yet (#76) — positions and a labeled diagram follow when it does. The electronics are the same family as the PropX-Pro.
The sealed enclosure
Weather-sealed for outdoor use — rain, fog machines, hose-downs — as long as the lid is closed and latched and every cable entry is snug. (Marketed as IP67; this documentation says "weather-sealed" while certification wording is pending.)
Power
9–24 V DC, 5 A max. Reverse-polarity protected; no fuse (built-in protection). (Power entry into the enclosure — #77; outdoor supply guidance — #81.)
Output pairs
Switching − + pairs, 1.5 A each — wire a prop across a pair. (How many pairs the enclosure exposes — #83.)
Trigger inputs and Trigger Power
Two inputs (A/B pins, either orientation, 12 V or ground, 2 A) plus Trigger Power.
⚠️ Warning: Trigger Power equals your supply voltage, and outdoor sensors must be weather-rated themselves.
Speaker connection
65 watts total, speakers 4–8 Ω (one bridged or a stereo pair). There is no AUX output on this model. Use weather-rated speakers outdoors.
DMX and PropX Mesh
DMX (512 channels) or PropX Mesh, chosen in the app — one at a time. (Port access on the sealed enclosure — #78; mesh jumpers — #44.)
MicroSD and USB-C

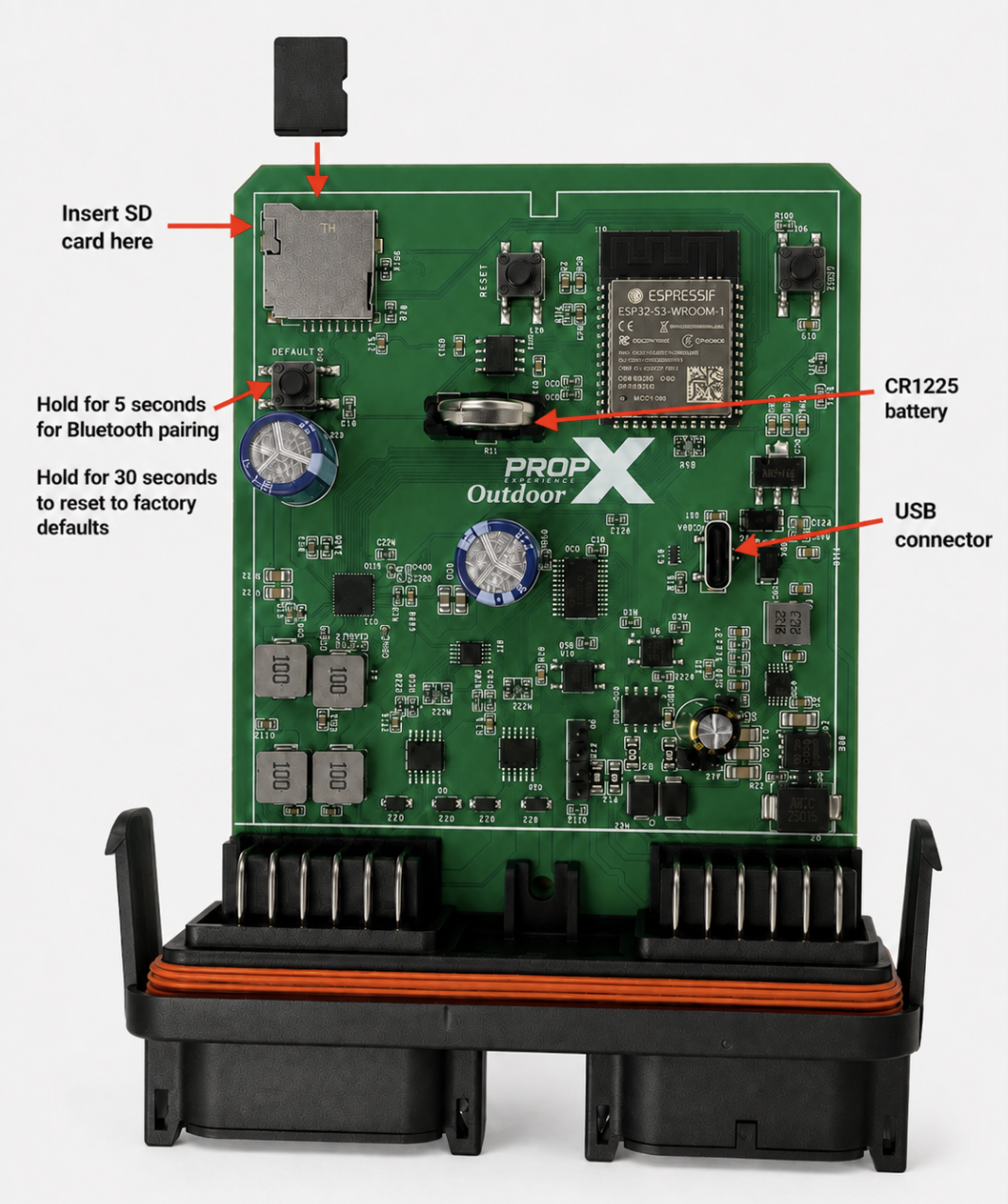

MP3s (≤32 MB) and firmware updates via MicroSD or the app (32 MB built-in); USB-C for service. (Access without opening the lid — #78.)
Lights
Status 1 / Status 2 — same meanings as the whole family; the table lives on the troubleshooting page. (Visibility with the lid closed — #79.)
Mounting
Enclosure mounting holes; footprint 117 × 133 mm (units — #49). No display on this model.
